Earth’s Structure

The outermost layer is the crust, or lithosphere, which varies in thickness, being thicker under continents and thinner beneath oceans. It comprises two segments: SIAL, a lighter layer of silica and aluminum forming the continental crust, and SIMA, a denser layer of silica and magnesium that makes up the oceanic crust. This external shell meets the next layer at the Mohorovicic Discontinuity. Beneath the crust lies the mantle, a substantial, semi-solid layer roughly 2900 km thick. Its viscous nature generates convection currents that power plate tectonics, and it is further subdivided into a partially molten upper asthenosphere and a more rigid lower section.

At the heart of the planet is the barysphere, an incredibly dense region predominantly composed of nickel and iron (NIFE), which is responsible for Earth’s magnetic field. This central zone comprises a liquid outer core, evidenced by the inability of S-waves to traverse it, and a solid inner core. Despite extreme temperatures, the immense pressure at the Earth’s center maintains the inner core in a solid state.

Since direct observation of Earth’s interior is impossible, scientists rely on indirect methods to decipher its composition and characteristics. The primary method involves analyzing seismic waves generated by earthquakes; their varying speeds and behaviors as they propagate through the Earth provide crucial insights into the physical properties of each layer. Supplementary information comes from studying volcanic ejecta, which offers clues about the upper mantle, and meteorites, believed to have a composition similar to Earth’s. Further understanding is derived from investigations into Earth’s magnetic and gravitational fields, as well as laboratory experiments simulating high-pressure and high-temperature conditions. This comprehensive approach is essential for explaining major geological phenomena like earthquakes, volcanic activity, and plate tectonics.

Exercises

I. Short Answer Questions

Question 1.
Name the sources of information about forces operating inside the earth.
Ans:

Unveiling Earth’s Inner Workings: Indirect Evidence

Since direct access to Earth’s deep interior is impossible, scientists employ clever indirect methods to understand the powerful forces at play:

• Seismic Waves: By studying how earthquake waves (P and S waves) propagate, reflect, and bend through Earth’s layers, we deduce the density, rigidity, and physical state (solid or liquid) of different depths. For example, the non-transmission of S-waves through the outer core confirms its liquid nature.
• Volcanic Materials: Volcanic eruptions deliver samples of magma and gases from the mantle to the surface. Analyzing their chemistry provides direct clues about the high-temperature and pressure conditions where they originated.
• Gravity Anomalies: Variations in Earth’s gravitational pull across its surface (gravimetry) reveal underlying mass distributions, indicating deep structures and density differences driven by internal forces like mantle convection. Satellite data is crucial for these observations.
• Surface Movement (Geodesy): Precise monitoring of Earth’s surface changes using technologies like GPS and InSAR shows crustal deformation. These movements are direct manifestations of underlying forces such as plate tectonics and magma pushing upwards.
• Heat Emission: Measuring the heat flowing out of Earth’s interior provides insights into the thermal processes within, including radioactive decay and primordial heat, which fuel significant internal dynamics like mantle convection.
• Magnetic Field: Earth’s magnetic field, generated by the churning molten iron in the outer core, offers indirect evidence about the core’s dynamics and composition, thereby revealing forces active in that region.
• Limited Direct Samples: Though incredibly shallow, rocks from deep boreholes and mines provide invaluable direct information about the uppermost crust’s composition, temperature, and pressure.
• Lab Simulations: Experiments that recreate the extreme pressures and temperatures found deep within Earth help scientists understand how materials behave under such conditions, aiding in the interpretation of all other data.

Question 2.

In which part of the earth is NIFE found ? What is it composed of ?

Ans:

In the realm of geology, the term “NIFE” serves as a shorthand to describe the dominant constituents of Earth’s innermost layer, the core.

This mnemonic stands for:

• Nickle
• Ferrum (the Latin word for Iron)

Essentially, NIFE highlights that the Earth’s core is predominantly composed of these two metallic elements: nickel and iron. Being exceptionally dense and heavy, these metals naturally gravitated and accumulated towards the very center of our planet during its formation, forming the massive core.

Question 3.

What are the consequences of the pressure and temperature in the interior of the earth ?

Ans:

Earth’s Interior: Pressure and Temperature’s Influence

The extreme pressure and temperature within Earth’s core are foundational to its makeup and surface phenomena. Their key consequences include:

• Layered Structure: These conditions determine the distinct states of Earth’s layers:
  • Solid Crust & Mantle: Pressure maintains their solid state, though the mantle flows plastically over vast periods.
  • Liquid Outer Core: Here, high temperatures overcome pressure, creating a molten iron-nickel mix.
  • Solid Inner Core: Despite immense heat, extreme pressure forces this innermost core to remain solid.
• Mantle Convection: Temperature gradients drive slow, heat-driven currents within the mantle, with hotter material rising and cooler sinking.
• Plate Tectonics: Mantle convection powers the movement of Earth’s lithospheric plates, leading to:
  • Earthquakes: Caused by stress release at plate boundaries.
  • Volcanism: Magma rising from melted rock.
  • Mountain Building: From plate collisions.
  • Ocean Basin Formation: From plates separating.
• Earth’s Magnetic Field: The convection of the liquid outer core, fueled by heat and rotation, generates the vital geodynamo, shielding our atmosphere.
• Rock Cycle & Mineral Changes: High pressure and temperature instigate rock metamorphism and control melting/solidification processes, crucial to the rock cycle.

Question 4.

What is the lithosphere ?

Ans:

The lithosphere is Earth’s rigid, outermost rocky shell. It’s composed of the crust and the solid, uppermost part of the upper mantle. This layer is essentially the “land” we live on, broken into large sections called tectonic plates that slowly move over the softer, more ductile layer beneath it (the asthenosphere).

Question 5.

Name the three layers of the earth’s interior.

Ans:

Earth’s Internal Architecture: A Three-Tiered Structure

• The Crust: This is Earth’s thinnest and outermost solid skin, the familiar ground upon which all life exists and human activity unfolds. It’s the only layer we directly inhabit and explore.
• The Mantle: Situated directly beneath the crust, the mantle constitutes the thickest layer of Earth’s interior. While predominantly solid, its material exhibits a remarkable property: it undergoes extremely slow, plastic-like flow over vast geological periods, a critical process driving plate tectonics.
• The Core: Occupying the very heart of the Earth, the core is further differentiated into two distinct parts: a molten, liquid outer core and a dense, solid inner core at the planet’s center. This innermost region is responsible for generating Earth’s protective magnetic field.

Question 6.

State two chief characteristics of the earth’s crust.

Ans:

Here are two chief characteristics of the Earth’s crust, presented uniquely:

1. Varying Thickness and Composition: The Earth’s crust is not uniform. It exhibits significant variations in both its thickness and its chemical makeup. Continental crust is generally thicker (ranging from 30-70 km) and is predominantly composed of lighter, less dense granitic rocks. In contrast, oceanic crust is considerably thinner (typically 5-10 km) and consists of denser, basaltic rocks. This fundamental difference in thickness and material directly impacts processes like plate tectonics and the formation of different landforms.
2. Relative Brittleness and Tectonic Activity: This characteristic allows it to fracture and break when subjected to immense forces generated by the convective currents in the mantle. This brittleness is crucial for tectonic activity, including the formation of faults, the occurrence of earthquakes, and the movement of tectonic plates. Without this characteristic, the dynamic processes that shape our planet’s surface would not occur in the same way.

Question 7.

Describe the mantle. State its two chief characteristics.

Ans:

Earth’s Mantle: A Dynamic Middle Layer

Key Characteristics:

1. Solid, Yet Flowing (Plasticity): Although it’s fundamentally solid rock, the mantle can deform and flow very slowly over geological time due to extreme pressure and high temperatures. This property, called plasticity (or rheidity), is most evident in the upper mantle’s asthenosphere, which allows Earth’s rigid tectonic plates to move across it.
2. Convection Currents: Driven by heat from the core and radioactive decay, the mantle is in constant, sluggish circulation. Hot, less dense material rises, cools, and then slowly sinks. This continuous convection acts as a colossal internal conveyor belt, providing the fundamental force behind plate tectonics, which in turn causes earthquakes, volcanic activity, mountain building, and the gradual reshaping of continents and ocean basins.

Question 8.

Where is the asthenosphere found ? In which form does it exist ?

Ans:

The Asthenosphere: Earth’s Ductile Engine Room

Nestled within the upper reaches of Earth’s mantle, immediately beneath the unyielding lithosphere (which comprises the crust and the very top portion of the mantle), lies the asthenosphere. This critical layer typically begins around 80 to 200 kilometers below the surface and can extend to depths of approximately 700 kilometers.

Its defining characteristic is its semi-plastic, deformable nature.This unique state allows the asthenosphere to deform and flow at a remarkably slow pace over vast geological timescales, behaving much like an incredibly thick, viscous fluid. This “ductile” property is of paramount importance, as it provides the crucial lubricant upon which the rigid tectonic plates of the lithosphere can glide and shift across the Earth’s surface, driving phenomena like continental drift, earthquakes, and volcanism.

Question 9.

Write one difference between Moho Discontinuity and Gutenberg Discontinuity.

Ans:

The core difference between the Moho Discontinuity and the Gutenberg Discontinuity lies in the distinct geological boundaries they delineate within Earth’s internal structure.

The Mohorovicic Discontinuity, often abbreviated as Moho, signifies the pivotal shift from the Earth’s outermost layer, the crust, to the denser layer beneath it, the mantle. Scientists detect this boundary through an observed increase in the velocity of seismic waves, indicating a change in rock density and composition as these waves transition from the crust to the mantle.

In contrast, the Gutenberg Discontinuity delineates the profound separation between the Earth’s mantle and its outer core. This boundary is marked by a more dramatic alteration in seismic wave behavior: primary (P) waves undergo a sharp decrease in speed, while secondary (S) waves entirely cease to propagate. The complete absence of S-waves at the Gutenberg Discontinuity is a critical piece of evidence that underpins the scientific understanding that the Earth’s outer core is in a liquid state, as S-waves are unable to travel through fluids.

Question 10.

Why is the earth’s interior in most part found in a solid state despite great heat and pressure ?

Ans:

The Earth’s inner core offers a compelling illustration of how extreme conditions can defy typical material behavior. While intense heat usually leads to a molten state, the inner core, despite its scorching temperatures, remains resolutely solid. This counter-intuitive solidity is a direct consequence of the colossal pressure exerted by the overlying geological strata.

For the majority of substances, an increase in pressure corresponds to an elevation in their melting point. The process of melting requires atoms within a solid to acquire sufficient energy, typically from heat, to overcome their rigid structural bonds. When subjected to immense pressure, these atoms are compressed into closer proximity, thereby strengthening the interatomic forces. Consequently, a significantly higher temperature is required to supply the energy necessary for them to transition into a liquid state.

The Earth’s internal stratification vividly showcases this pressure gradient. The outermost layer, the crust, exists as a solid. Beneath it, the mantle, though fundamentally solid, exhibits a remarkably slow, fluid-like behavior over extended geological timescales due to elevated temperatures, facilitating convection currents. The outer core, despite being extraordinarily hot, maintains a liquid state. In this region, the pressure is insufficient to prevent the iron and nickel from melting at the prevailing temperatures.

Conversely, the inner core, situated at the very heart of our planet, endures the most extreme pressure from all the encompassing layers. This colossal force, estimated to be millions of times greater than the atmospheric pressure at the Earth’s surface, is potent enough to compact the iron and nickel alloy into a dense, crystalline solid. This remarkable solidification occurs even though the inner core’s temperature vastly surpasses the normal melting points of these metals under less extreme conditions.

Question 11.

Name two types of earth movements.

Ans:

The two primary types of Earth movements are:

1. Diastrophic Movements (Slow/Endogenetic Movements): These are long-term, large-scale movements that cause significant changes to the Earth’s crust over geological time. They are driven by forces originating deep within the Earth (endogenetic forces). Examples include:
   • Orogenetic Movements: Leading to the formation of mountains (e.g., folding and faulting).
   • Epeirogenetic Movements: Causing the uplift or subsidence of large continental areas, leading to the formation of plateaus and rift valleys.
2. Sudden Movements (Exogenetic Movements): These are abrupt and often violent movements that result from sudden release of energy within the Earth. They are also driven by endogenetic forces but occur over very short periods. Examples include:
   • Earthquakes: Sudden shaking of the ground caused by the release of stress along fault lines.
   • Volcanic Eruptions: The expulsion of molten rock (magma), ash, and gases from beneath the Earth’s surface.

Question 12.

What is Geology ?

Ans:

It delves into the planet’s composition, from microscopic crystals to its layered internal structure (crust, mantle, core). Geologists investigate dynamic internal forces like plate tectonics, volcanism, and earthquakes, as well as external forces such as weathering, erosion, and deposition that shape the surface. By interpreting rocks, fossils, and landforms, they reconstruct Earth’s past, tracing the evolution of life, ancient climates, and continental shifts. This field is also vital for identifying and managing natural resources like fossil fuels and metallic ores, and for studying natural hazards such as earthquakes and volcanic eruptions to predict and mitigate their impacts.

II. Give reasons for each of the following

Question 1.
The study of meteorites helps scientists to know about the interior of the earth.
Ans:

Meteorites, cosmic wanderers that occasionally grace our planet, serve as invaluable proxies for understanding Earth’s deep interior, a realm forever beyond direct human reach. Their study offers profound clues to our planet’s formation and composition:

1. Shared Ancestry, Shared Elements: The prevailing scientific consensus posits that Earth and meteorites coalesced from the same cosmic dust cloud—the primordial solar nebula. By meticulously analyzing the elemental makeup of meteorites, especially those rich in iron and nickel (believed to be remnants of differentiated planetary cores), scientists can extrapolate the likely composition of Earth’s own metallic core and the rocky silicate mantle surrounding it. They act as “chemical blueprints” from the early solar system, reflecting the foundational ingredients that built our world.
2. Cosmic Blueprint for Terrestrial Layering: Many meteorites, particularly those originating from asteroids that experienced internal melting and separation of materials (a process akin to early Earth’s evolution), exhibit clear internal layering. Iron meteorites, for instance, are almost purely metallic, strongly suggesting a similar iron-nickel core within Earth. Stony-iron meteorites, with their mix of metal and silicates, offer glimpses into the transition zone or mantle-like regions. By observing how these distinct layers formed within meteorites, researchers gain critical insights into the differentiation process that led to Earth’s fundamental division into crust, mantle, and core. These extraterrestrial samples showcase the universal principles of planetary stratification.
3. Isotopic Fingerprints: Tracing Earth’s Genesis: Each meteorite carries a unique isotopic signature – a specific ratio of heavy to light isotopes for various elements. These “isotopic fingerprints” are like cosmic barcodes, providing a temporal and compositional record. By meticulously comparing the isotopic ratios found in terrestrial rocks with those embedded within different meteorite types, scientists can pinpoint the origins of Earth’s constituent materials. This comparative analysis refines our models of Earth’s accretion, elucidating which building blocks contributed to its bulk composition and how they contributed to the distinct layering we observe today.
4. Primitive Matter: A Window to Undifferentiated Earth: A special class of meteorites, known as chondrites, are considered particularly pristine. They represent the initial, undifferentiated raw material from which the solar system, including Earth, condensed. This information is crucial for understanding the bulk chemical composition of Earth before its internal heat and gravity caused its materials to separate into the distinct layers of crust, mantle, and core. Chondrites offer a glimpse into Earth’s very first moments, before its internal structure began to take shape.

Question 2.

Temperature starts rising gradually towards the interior of the earth.

Ans:

The Earth’s interior experiences a remarkable increase in temperature with depth, a phenomenon known as the geothermal gradient. This temperature rise averages about 25-30 degrees Celsius for every kilometer descended in the upper crust, though geological variations can alter this rate.

Sources of Earth’s Internal Heat

Several primary mechanisms contribute to this progressive heating within our planet:

• Primordial Heat: The very formation of Earth, billions of years ago, involved the violent accretion of cosmic debris and intense gravitational compression. This process generated immense initial heat, a significant portion of which is still retained deep within the Earth’s core and mantle, gradually migrating outwards.
• Radioactive Decay: The most substantial ongoing source of the Earth’s internal warmth is the continuous radioactive decay of unstable isotopes. Elements such as Uranium (238U, 235U), Thorium (232Th), and Potassium (40K), dispersed throughout the mantle and core, release thermal energy as they transform into more stable forms. This ceaseless atomic breakdown acts as a constant internal heat generator.
• Frictional Heat: While a lesser contributor, the immense pressures and the gradual, grinding movements of materials within the Earth’s layers can produce frictional heat. This is particularly relevant at the interfaces between different layers or during internal deformation processes.

Temperature Profile of Earth’s Layers

The culmination of these heating processes leads to extreme temperatures in the Earth’s deeper regions:

• The crust remains relatively cool.
• Temperatures within the mantle can range from approximately 1000°C to 3700°C.
• The inner core, despite its solid state due to overwhelming pressure, is estimated to reach temperatures comparable to the Sun’s surface, potentially soaring to 4000-6000°C.

This profound internal heat is the fundamental engine driving many crucial geological phenomena, including the movement of tectonic plates, the occurrence of volcanism, and the generation of Earth’s protective magnetic field.

Question 3.

The asthenosphere is in a semi-molten state.

Ans:

The asthenosphere, a crucial layer within the Earth’s mantle, is characterized by its semi-molten or highly viscous state. This unique characteristic means it’s not a completely liquid ocean of magma, nor is it rigidly solid like the crust above it. Instead, it behaves more like a very thick, slow-flowing tar or a deformable plastic.

This semi-molten nature is attributed to a combination of factors:

• High Temperatures: Temperatures within the asthenosphere are sufficiently high to cause some of the rock material to melt.
• High Pressure: While the pressure is immense, it’s not enough to completely solidify all the material, allowing for a small percentage of melt.

The presence of this partially molten material allows the asthenosphere to deform and flow very slowly over geological timescales. This plastic-like behavior is fundamental because it provides the mechanism for the movement of the rigid tectonic plates that make up the Earth’s lithosphere (crust and uppermost mantle). The lithospheric plates essentially “float” and “slide” on this ductile asthenosphere, driving phenomena such as continental drift, seafloor spreading, and the formation of mountains and ocean trenches.

Question 4.

The inner core is in a solid state.

Ans:

The Earth’s inner core, despite experiencing temperatures as high as the Sun’s surface (estimated at 4000°C to 6000°C), remarkably remains in a solid state. This phenomenon can be attributed to the overwhelming pressure exerted by the colossal weight of the overlying Earth layers—the outer core, mantle, and crust.

To put it simply, under such extraordinary force, the atoms are compelled into a tightly packed, rigid lattice structure, preventing them from transitioning into a liquid state even at these extreme temperatures. The solid nature of the inner core is further substantiated by seismic data, particularly the behavior of compressional waves (P-waves) as they propagate through this deepest region of our planet.

Question 5.

The continents are placed above the oceans.

Ans:

It’s a prevalent misunderstanding that continents merely perch on top of the oceans, like ships at sea. In reality, both the massive landforms we call continents and the vast ocean bodies are integral components of Earth’s crust, our planet’s solid, outermost layer.

The Dynamic Relationship Between Continents and Oceans

The Earth’s crust isn’t a single, uniform entity; instead, it comprises two distinct types:

• Continental Crust: This layer is considerably thicker, typically varying from approximately 30 to 70 kilometers. It’s also less dense, being primarily composed of granitic rocks. These properties are what give rise to the expansive landmasses we recognize as continents.
• Oceanic Crust: In contrast, this crust is much thinner, usually only 5 to 10 kilometers thick, and significantly denser. It’s predominantly made of basaltic rocks, forming the deep depressions that hold the world’s oceans.

Both of these crustal types effectively “float” on the mantle, the underlying, much denser, and semi-fluid layer. This state of balance is explained by the principle of isostasy. Think of it like an iceberg: most of its bulk is submerged, with only a fraction visible above the water. Similarly, the Earth’s crust maintains its equilibrium based on its density and thickness.

The oceans simply fill the lower-lying depressions found within the oceanic crust. Water accumulates in these areas, which are shaped by the denser, thinner oceanic crust, creating the immense aquatic expanses we observe.

Therefore, it’s imprecise to suggest that continents are “located above” the oceans. Instead, continents represent the elevated, thicker, and less dense segments of the Earth’s crust, while oceans occupy the basins formed by the thinner, denser oceanic crust. Crucially, both of these distinct crustal types are supported by the underlying mantle.

III. Long Answer Questions

Question 1.
Look at the figure on the side and answer the questions:

(a) Label the parts : (1), (2), (3), (4) and (5).
(b) Name the state (solid, liquid or gas) in which each part exists.

Ans:

(a)

1. Atmosphere
2. Lithosphere
3. Mantle
4. Core
5. Hydrosphere.

(b)

1. Atmosphere — Gas
2. Lithosphere — Solid
3. Mantle — Semi-solid
4. Core — Molten state or liquid
5. Hydrosphere — Liquid (water)

(c) What part is suitable for human habitation? Why?

 Ans:

The Earth’s crust, particularly its surface, is the only part of our planet suitable for human habitation. This is due to a unique combination of factors:

• Moderate Temperatures: Unlike the extreme heat of the deeper layers or the cold of space, the surface maintains a temperature range that supports liquid water and diverse life.
• Life-Sustaining Atmosphere: The presence of oxygen for breathing, protection from solar radiation (ozone layer), and temperature regulation are all provided by the atmosphere above the crust.
• Abundant Resources: The surface offers essential resources like water, fertile soil for agriculture, accessible minerals, and vegetation, which forms the base of food chains.
• Stable Ground & Suitable Pressure: The solid nature of the crust provides stable ground for construction and activities, while the atmospheric pressure is ideal for human physiology.
• Sunlight: The surface receives sunlight, vital for photosynthesis, warmth, and light.

In contrast, the mantle and core are uninhabitable due to extreme temperatures, immense pressure, their molten or semi-molten state, and the complete absence of oxygen and water. This unique confluence of conditions makes the Earth’s surface the sole haven for human life.

Question 2.

Describe the layers of the interior of the earth and their chemical composition.

Ans:

The Earth’s interior is organized into a series of distinct concentric layers, each with unique properties. The outermost layer is the Crust, also known as the lithosphere, which represents the planet’s thinnest and coolest solid shell. Its thickness varies significantly, being approximately 5-10 kilometers under the oceans and expanding to as much as 70 kilometers beneath continental landmasses. In contrast, the oceanic crust, termed SIMA, is denser, rich in silica and magnesium, and primarily basaltic in its nature.

Beneath the crust lies the Mantle, a vast layer that extends to a depth of roughly 2900 kilometers and constitutes about 84% of Earth’s total volume. While largely solid, the mantle behaves like a highly viscous fluid over geological time, with internal convection currents driving the movement of tectonic plates. This layer is abundant in silicate minerals, with a higher concentration of iron and magnesium compared to the crust. The mantle is further divided into the ductile upper mantle, or asthenosphere, which allows for plate movement, and the more rigid lower mantle, which remains solid due to the immense pressure it experiences.

At the Earth’s very center is the Core, also called the barysphere or centrosphere. This innermost layer, with a radius of approximately 3485 kilometers, is the hottest and densest part of the planet, composed mainly of iron and nickel, hence its designation as NIFE. Despite the incredibly high temperatures within the inner core, ranging from 5,000°C to 6,000°C, the extraordinary pressure at this depth prevents it from melting, maintaining its solid state.

Question 3.

There are two transitional zones between the two consecutive layers of the interior of the earth. Name them and state their chief characteristics.

Ans:

The Earth’s internal structure is segmented by two pivotal transitional zones, each marking a profound shift in material properties and physical state. These discontinuities are:

Mohorovičić Discontinuity (Moho Discontinuity): This critical boundary demarcates the Earth’s outermost layer, the crust, from the underlying mantle. Its depth varies, typically found around 35 km beneath continents and a shallower 5-10 km under oceanic crust. Key characteristics of the Moho include:

• Density Leap: There’s an abrupt and substantial increase in material density as one transitions from the crust to the denser rocks of the mantle.
• Compositional Change: It signifies a shift from the silicate-rich rocks of the crust (featuring aluminum in SIAL and magnesium in SIMA) to the denser, ultramafic rocks of the upper mantle, which are more abundant in iron and magnesium.
• Physical Property Alteration: While both layers are solid, the Moho indicates a change in the rigidity and fundamental physical characteristics of the rock types.

Gutenberg Discontinuity (Core-Mantle Boundary – CMB): Located at an approximate depth of 2,900 km from the Earth’s surface, this profound boundary separates the solid, albeit plastic, silicate rocks of the mantle from the molten iron-nickel alloy of the outer core. Its defining features are:

• Phase Transformation: This represents a dramatic shift from a solid (mantle) to a liquid (outer core) state.
• S-wave Annihilation: A definitive characteristic is the complete absorption of S-waves (secondary or shear waves) beyond this depth, as these waves cannot propagate through liquid mediums.
• P-wave Deceleration: P-waves (primary or compressional waves) experience a significant reduction in velocity as they transition from the solid mantle into the liquid outer core.
• Substantial Density Increase: A remarkable increase in density is observed across this boundary, transitioning from the rocky material of the mantle to the significantly denser metallic core.
• Chemical and Thermal Divide: It marks a major change in both chemical composition (from silicates to an iron-nickel alloy) and temperature, with a considerable temperature gradient across this interface. This boundary plays a vital role in transferring heat from the core to the mantle, which in turn drives mantle convection and the movement of tectonic plates.

Question 4.
Explain the layers of the interior of the earth with reference to the following :

(a) Depth,
(b) Temperature
(c) Density.

Ans:

The Earth’s interior is systematically organized into three primary layers: the crust, mantle, and core, each differentiated by its depth, temperature, and density. The crust, our planet’s outermost and most slender solid layer, varies in thickness from roughly 5-10 kilometers under oceans to 60 kilometers beneath mountainous regions. It is characterized by the lowest temperatures among the layers, which progressively rise with increasing depth, and the least density, typically between 2.7 and 3.3 grams per cubic centimeter, reflecting its lighter silicate composition.

Below the crust, the mantle extends to a substantial depth of approximately 2,900 kilometers. Within this layer, temperatures escalate sharply with increasing depth, ranging from about 500°C near the crust to nearly 4,000°C as it approaches the core. This extreme heat imparts a semi-solid, viscous nature to the mantle, facilitating the convection currents that drive the movement of tectonic plates. Correspondingly, the mantle’s density also rises with depth, from 3.3 g/cm³ in its upper part to 5.7 g/cm³ in its lower sections, influenced by escalating pressure and the presence of denser mineral forms.

The innermost layer is the core, reaching from 2,900 kilometers down to the Earth’s center at 6,371 kilometers. This region experiences the most extreme conditions, with temperatures estimated to be between 4,400°C and 6,000°C. Despite this intense heat, the inner core remains solid due to the overwhelming pressure. Primarily composed of iron and nickel, the core is the densest layer, with densities varying from approximately 9.9 g/cm³ in the liquid outer core to an astonishing 12.6 to 13.0 g/cm³ in the solid inner core, a clear demonstration of how immense pressure impacts its metallic constituents.

Question 5.

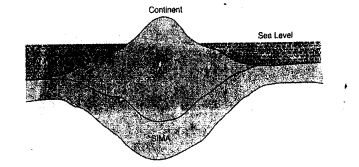

Study the figure on the side and answer the questions:

(a) What is known as Sial ? How deep is the area marked by Sial ?
(b) What role does Sima play ?
(c) Why is the expression ‘Nife’ so called ?
(d) Which layer is responsible for earth’s magnetic field ? Why?
(e) What happens to the continents if there is an earthquake?

Ans:

Here are the rephrased answers:

(a) Sial signifies the uppermost division of the Earth’s crust, characterized by its rich composition of silicon and aluminum. As illustrated in the provided diagram, the depth of this continental mass, representing the Sial layer, is highly variable. Typically, the continental crust (Sial) extends downward between 30 and 70 kilometers, reaching its greatest depths beneath major mountain formations.

(b) Sima, composed of silicon and magnesium, forms the deeper segment of the Earth’s crust, prominently forming the oceanic floor. Its essential role is to establish the foundation of ocean basins and provide a denser substratum upon which the less dense continental Sial bodies effectively “buoy,” illustrating the fundamental principle of isostasy.

(c) The designation ‘Nife’ is attributed to the Earth’s core because its primary constituents are Nickel (Ni) and Iron (Fe), with ‘Fe’ stemming from the Latin word ‘ferrum’.

(d) This phenomenon occurs because the outer core comprises a vast reservoir of molten iron and nickel. The complex convective flows within this fluid metallic layer, combined with Earth’s rotational motion, generate electric currents.

(e) When an earthquake occurs, the continents, being fundamental components of the Earth’s crust, undergo vigorous shaking and vibration. This abrupt movement releases seismic waves (P-waves, S-waves, and surface waves) that propagate through the Earth’s crust, causing the land, and thus the continents, to oscillate. The effects can vary widely, from barely noticeable tremors to violent ground motion resulting in extensive destruction, depending on the earthquake’s magnitude and proximity to the affected area.

Practice Questions (Solved)

Question 1.
Which are the two most abundant chemical elements in the Earth’s crust ?
Ans:

Oxygen and Silicon.

Question 2.

Why does the Sun not rise at the same time everywhere in the world ?

Ans:

The Sun doesn’t rise at the same time across the globe primarily due to two fundamental reasons: the Earth’s spherical shape and its continuous rotation on its axis.

Firstly, As the Earth spins, different parts of the planet are progressively exposed to the Sun’s rays. Imagine a line dividing the illuminated half from the dark half – this is the terminator, or twilight zone. As the Earth rotates, locations sequentially cross this terminator from the dark side into the light, experiencing sunrise.

Secondly, the Earth’s consistent rotation on its axis, completing one full spin approximately every 24 hours, means that every point on its surface is constantly moving. This continuous motion dictates that each longitude will align with the sunrise terminator at a different precise moment. This ongoing rotation is why we have distinct time zones; as one region experiences dawn, another region further west is still in darkness, and a region further east is already experiencing daytime. This combination of the Earth’s spherical geometry and its axial rotation ensures that sunrise is a sequential event that sweeps across the planet rather than occurring simultaneously everywhere.

Question 3.

“The whole of the approaching ship is not visible at one time.” Why ?

Ans:

The phenomenon of an approaching ship not being entirely visible at once is due to the spherical curvature of the Earth.

Here’s why:

When a ship approaches the shore from a distance, the first part of it that becomes visible is typically the mast or the highest point. This is because the Earth’s curved surface blocks the lower parts of the ship from your line of sight. As the ship draws nearer, more of its hull gradually rises into view, until the entire vessel is observable. This sequential appearance, from top to bottom, serves as compelling visual evidence that the Earth is a sphere, not flat. If the Earth were flat, the entire ship would theoretically become visible all at once, merely appearing as a small dot that grows larger.

Question 4.

“Even when the Earth is spherical, it appears to be flat.” Discuss.

Ans:

Despite overwhelming scientific evidence and observations from space confirming Earth’s spherical (or more accurately, oblate spheroid) shape, our everyday experience on its surface strongly suggests a flat world. This perceptual paradox primarily stems from the immense scale of our planet relative to human observers and our limited field of vision. The Earth’s circumference is approximately 40,000 kilometers, meaning that its curvature is incredibly gradual over any distance we can typically observe with the naked eye. For instance, the surface drops only about 8 inches over a distance of one mile, a deviation too minute to be visually detected over short or even moderate stretches of land or sea. Our brains are naturally inclined to interpret straight lines and flat surfaces within our immediate environment, reinforcing this illusion.

Furthermore, the horizon always appears as a straight line from our ground-level vantage point, contributing to the perception of a flat plane extending indefinitely. It is only when observing phenomena over vastly greater distances, such as a ship’s hull disappearing before its mast as it sails away, or by gaining significant altitude (e.g., from an airplane or space), that the Earth’s gentle curve becomes discernible. Scientific methods, including satellite imagery, global navigation systems, and the ability to circumnavigate the globe, unequivocally prove its spherical nature, but these are perspectives and proofs that lie beyond our immediate, localized sensory experience.

Therefore, the apparent flatness of the Earth is a direct consequence of the profound disparity in scale between a human observer and the colossal size of our planet. Our localized, ground-level observations simply cannot encompass enough of the Earth’s surface to reveal its grand, global curvature, thereby creating a persistent, yet scientifically inaccurate, everyday impression.

Question 5.

Why is the Earth slightly flattened at the poles ?

Ans:

The Earth’s distinctive shape, an oblate spheroid, characterized by a slight flattening at its poles, is predominantly a result of its rotational motion.

Consider the Earth akin to a rapidly spinning blob of pliable material. As this mass rotates, the material situated at the equator, being furthest from the central axis of rotation, experiences a more pronounced outward-directed centrifugal force than the material closer to the poles. This centrifugal effect causes the equatorial regions to distend outwards, while concurrently pulling material away from the polar areas. The net outcome is a subtle compression or flattening at the poles. This physical outcome stems directly from the intricate interplay between the planet’s inherent gravitational attraction, which endeavors to maintain a perfect spherical form, and the outward inertial forces generated by its ceaseless rotation.

Question 6.

Explain briefly the structure of the earth.

OR

Discuss the structure of the earth giving details about each of its layers and arguments in support of your contention.

Ans:

The Earth’s interior is systematically divided into three major concentric layers: the crust, mantle, and core, each possessing distinct characteristics crucial to the planet’s geological dynamics.

The crust, Earth’s thinnest and outermost solid layer, varies, with the thicker, less dense continental crust (rich in silicon and aluminum) and the thinner, denser oceanic crust (rich in silicon and magnesium). Evidence for its composition and variable thickness comes from surface geology, deep drilling, and the acceleration of seismic P-waves through this rigid layer.

Below the crust, the mantle is a substantially thicker, mostly solid yet viscous layer, extending to about 2,900 kilometers deep. It includes the upper mantle, with its partially molten asthenosphere crucial for plate tectonics, and the denser lower mantle. The mantle’s semi-plastic nature is inferred from the significant slowing of seismic S-waves passing through it, indicating fluid-like behavior over long geological periods. The ongoing movement of tectonic plates provides strong evidence for convection currents within this heated, deformable layer.

The innermost region is the core, primarily iron and nickel, consisting of a liquid outer core and a solid inner core. The liquid state of the outer core is strongly supported by the complete absorption of S-waves and the significant refraction of P-waves within it, creating a seismic “shadow zone.” Furthermore, the Earth’s magnetic field is a direct consequence of the convective motion within this vast, rotating, liquid metallic outer core. Despite extreme temperatures, the inner core is inferred to be solid due to immense pressure, a conclusion supported by a slight increase in P-wave velocity as they traverse this innermost segment.

Question 7.

Where is Mantle located on the Earth ?

Ans:

The Earth’s mantle lies directly beneath the crust, forming a substantial layer that extends downwards to encase the planet’s outer core. This vast region represents the most voluminous part of the Earth’s internal architecture, fundamentally enclosing its dense, central core.

Characterized by its semi-solid, viscous nature, the mantle plays a critical role in Earth’s geological dynamics. It is within this immense layer that convection currents, driven by extreme temperatures and pressures, facilitate the slow but continuous movement of tectonic plates, profoundly shaping the Earth’s surface over geological timescales.

Question 8.

Describe any three experiments to prove the Spherical Shape of the Earth.

Ans:

1. If you observe a ship approaching the sea coast, the top of the mast is seen first and the hull, lower parts are seen gradually. Due to the curvature of the Earth, the whole ship is not seen at one time.

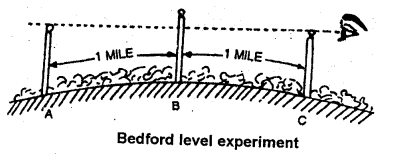

2. Fix three poles of equal length at equal distance on the ground. These do not give a horizontal level. The top of the middle pole looks higher than the other two poles due to the curvature of the Earth. This experiment was done by Mr A.R. Wallace on Bedford canal.

3. If you look around at the Earth’s horizon (where Earth and sky appear to meet), it will everywhere and always appear circular. It widens with increasing altitude due to Spherical Earth.
